PTDiffusionRecordV2SchemaNode Class Reference

A node within a schema. More...

#include <PTDiffusionRecordV2SchemaNode.h>

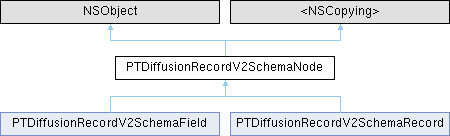

Inheritance diagram for PTDiffusionRecordV2SchemaNode:

Instance Methods
(BOOL)	- isEqualToRecordV2SchemaNode:

Properties
NSString *	name
SInt32	min
SInt32	max
BOOL	variable

Detailed Description

A node within a schema.

Since

6.0

Method Documentation

isEqualToRecordV2SchemaNode:

- (BOOL) isEqualToRecordV2SchemaNode:

(nullable PTDiffusionRecordV2SchemaNode *)

node

Compares the receiver to the given schema node.

Parameters

node	The schema node object with which to compare the receiver.

Returns

YES if the node is equal to the contents of the receiver, otherwise NO.

Since

6.0

Property Documentation

max

- (SInt32) max

readnonatomicassign

The maximum number of occurrances of the node within its parent.

This will be a positive value greater than or equal to the minimum value, or -1 to indicate an unlimited number.

Since

6.0

min

- (SInt32) min

readnonatomicassign

The minimum number of occurrences of the node within its parent.

This may be zero for a variable multiplicity field, otherwise it will be a positive value.

Since

6.0

name

- (NSString*) name

readnonatomicassign

The node name.

Since

6.0

variable

- (BOOL) variable

readnonatomicassign

YES if the node has variable multiplicity - i.e. min != max.

Since

6.0
